UK PVC Profile Sizes: A Practical Guide to Picking the Right One

One of the most common reasons customers order the wrong PVC profile is sizing. Buy too small and it won't cover the surface. Buy too big and it looks bulky. Pick a U-channel that's narrower than your panel thickness and it simply won't slide on. Sizing isn't complicated, but you do need to know what to measure and what to match it to.

This guide breaks down how PVC profile sizes work, the common UK sizes we stock, and which size to pick for the typical sheet materials and applications you'll come across.

How PVC Profile Sizes Are Described

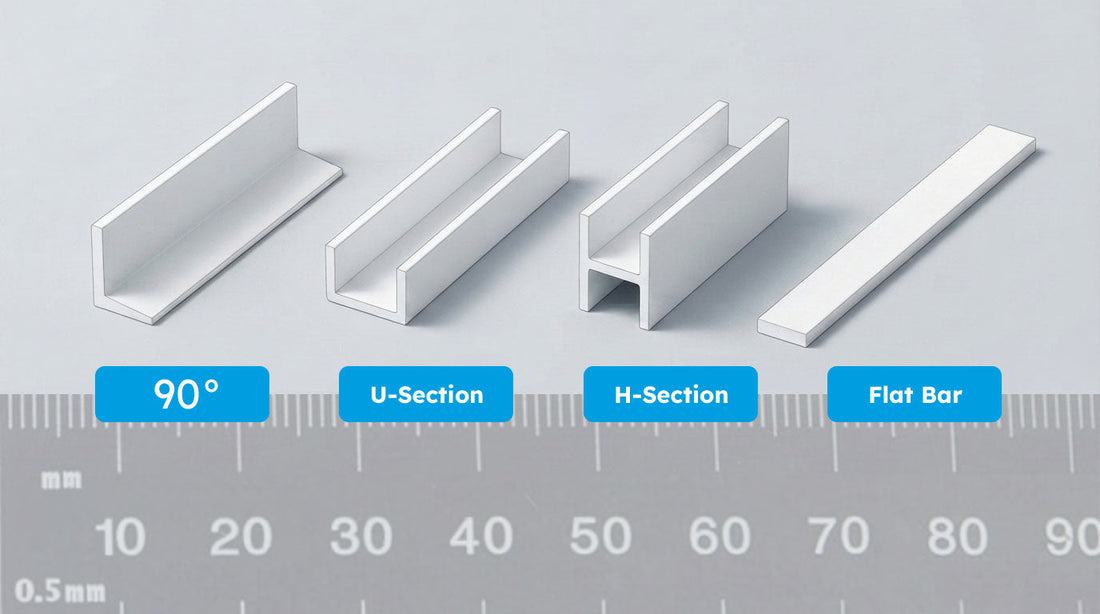

PVC profiles are sized by their key structural dimensions: angle trims by leg lengths (e.g., 20mm x 20mm), U-channels and H-sections by internal channel width to match panel thickness, flat bars by width and thickness, and box sections by external width and height.

Different profile types are sized differently. Knowing what the numbers refer to is half the battle.

Angle trims and L-sections: sized by the length of each leg. A 20mm x 20mm angle trim has two equal faces, each 20mm wide. An unequal angle trim might be 15mm x 10mm, meaning one face is 15mm and the other is 10mm.

U-channels and C-sections: sized by the channel width, which is the gap inside the U that your panel slides into. A 12mm U-channel fits a 12mm thick panel.

H-sections: sized by the panel thickness each side of the H accepts. A 4mm H section fits 4mm panels in both grooves.

Flat bars: sized by width and thickness. A 25mm x 2mm flat bar is 25mm wide and 2mm thick.

Box sections: sized by external width and height (and sometimes wall thickness). A 25mm x 25mm box section is a square tube measuring 25mm on each external face.

Standard UK Sheet Material Thicknesses

Most edge protection and joining work involves fitting a profile to a standard sheet material. Here are the thicknesses you'll meet most often:

2.5mm to 4mm: Standard thickness for glass panels, acrylic/Plexiglas sheets, and thin plastic signage. Use our 2.5mm or 4mm PVC U-Channels or H-sections for a flush edge.

• 6mm: Common for lightweight plywood backings, thick acrylic displays, and specialist MDF. This is also the standard thickness for heavy-duty vivarium glass doors.
• 9mm to 10mm: Standard thickness for internal wall cladding panels, lightweight plasterboard, and medium-duty plywood partition panels.
• 12mm: The go-to size for standard plywood sheeting, interior MDF panels, and structural timber boards.
• 15mm to 18mm: The standard thickness for furniture carcasses, kitchen cabinet doors, MFC (melamine-faced chipboard), and heavy-duty structural shelving.

Friction Fit vs. Loose Fit: The Sizing Golden Rule

When selecting a channel (like a U-channel or H-section) to cap a raw sheet edge, you need to decide between a snug friction fit and a loose adhesive fit.

If you want a clean, mechanical **friction fit** (where the channel stays on by itself without glue), select a profile where the internal channel width matches your material thickness exactly (e.g., a 6mm U-channel on 6mm glass). Because PVC has a tiny amount of natural flex, it will grip the sheet tightly.

If your sheet material is slightly irregular (like rough-sawn plywood or budget MDF which can swell slightly), we highly recommend choosing a profile that is **1mm wider** than your material. This prevents you from having to force the channel on, which can split the plastic. You can then secure the slight gap cleanly using a thin bead of flexible adhesive inside the channel.

Get Precision Advice for Your Project

Still not sure which profile size will give you the neatest finish? Our UK-manufactured profiles are designed to meet standard British building and trade dimensions perfectly. Explore our full catalog of PVC profiles to compare detailed dimensions, or check out our delivery guide to see how quickly we can get your sizing samples dispatched directly to your site.
