If you have ever searched for a plastic channel profile and found yourself faced with a list of U sections, H sections, J sections and C sections with no clear explanation of what each one does, this guide is for you.

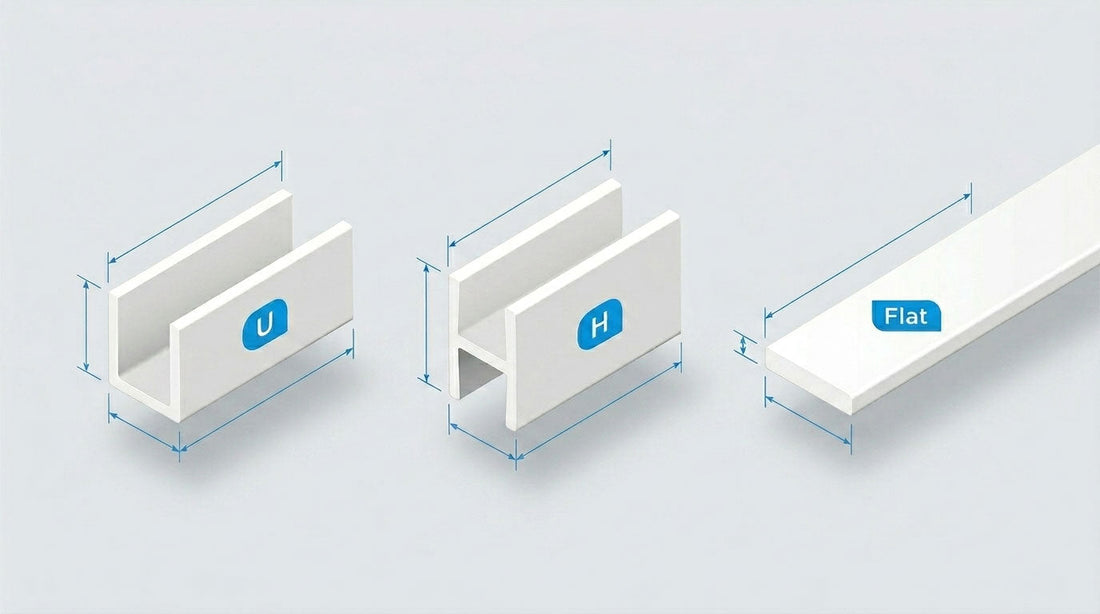

Plastic channel profiles all look similar at first glance. They are extruded PVC shapes with a channel or groove running along their length. But each profile shape serves a different purpose, and picking the wrong one for your application means either a poor fit or having to order again. Here is a plain-English guide to the most common types and when to use each one.
U Channel: Edge Protection and Finishing
A U channel (also called a U profile or edge trim) has a channel that runs along one edge, creating a U shape in cross-section. It is designed to slide over the edge of a board, panel or sheet to protect it and give a clean finish.
When to use a U channel:
- Protecting the raw edge of plywood, MDF, acrylic or glass
- Finishing the edges of wall panels and cladding boards
- Edge protection on worktops, shelving and display units
- Covering sharp or rough panel edges in commercial displays
The channel depth and width determines what thickness of material it fits. Always check the channel dimensions against your material thickness before ordering.
H Section: Joining Two Panels Together
An H section (also called an H profile or joining strip) has a channel on both sides, creating an H shape in cross-section. It is designed to join two adjacent panels edge to edge, with one panel sitting in each channel.
When to use an H section:
- Joining glass panes in greenhouses and cold frames
- Joining acrylic, polycarbonate or Foamex panels in signage and displays
- Creating neat, clean joins in wall cladding
- Joining vivarium glass panels
Our Clear PVC H Profile for 3mm to 6mm glass is the most popular choice for greenhouse glazing and signage panel jointing. The clear PVC is virtually invisible against glass and acrylic, maintaining a clean aesthetic across the full join.
Flat Bar Strip: Surface Covering and Bridging
A flat bar strip is not technically a channel profile. It has no channel at all. It is a flat, rectangular section of PVC used to cover gaps, bridge joints and provide a clean flat surface. Think of it as a plastic batten.
When to use a flat bar strip:
- Covering the join line between two wall panels
- Bridging a gap between surfaces
- Providing a flat mounting surface for fixtures
- General trim and finishing work
Our PVC flat bar strips are available in rigid and flexible versions, covering a wide range of applications.
Which Profile Do You Need? A Quick Decision Guide
| Situation | Profile to Use |
|---|---|
| Protecting a raw panel edge | U channel |
| Joining two panels side by side | H section |
| Covering a gap or joint on a surface | Flat bar strip |
| Greenhouse glass joins | H section (clear) |
| Vivarium sliding glass | Vivarium runner (U channel variant) |
| Corner protection on walls | Angle trim |
Getting the Size Right
Whichever profile you choose, the most important measurement is the channel width. This must match the thickness of the material going into it. Standard sheet materials come in these common thicknesses:
- 3mm: standard acrylic and thin glass
- 4mm: standard horticultural greenhouse glass
- 6mm: toughened glass and thicker acrylic
- 9mm to 11mm: standard wall boards and cladding panels
- 18mm: standard plywood and MDF sheet
Always measure your material before ordering and check the channel dimensions on the product listing.
